post & beam shed GR2C


timber frame Shed Shelter Hut Storage unit Outbuilding Shack Cabin Warehouse Lean-to Barn Workshop

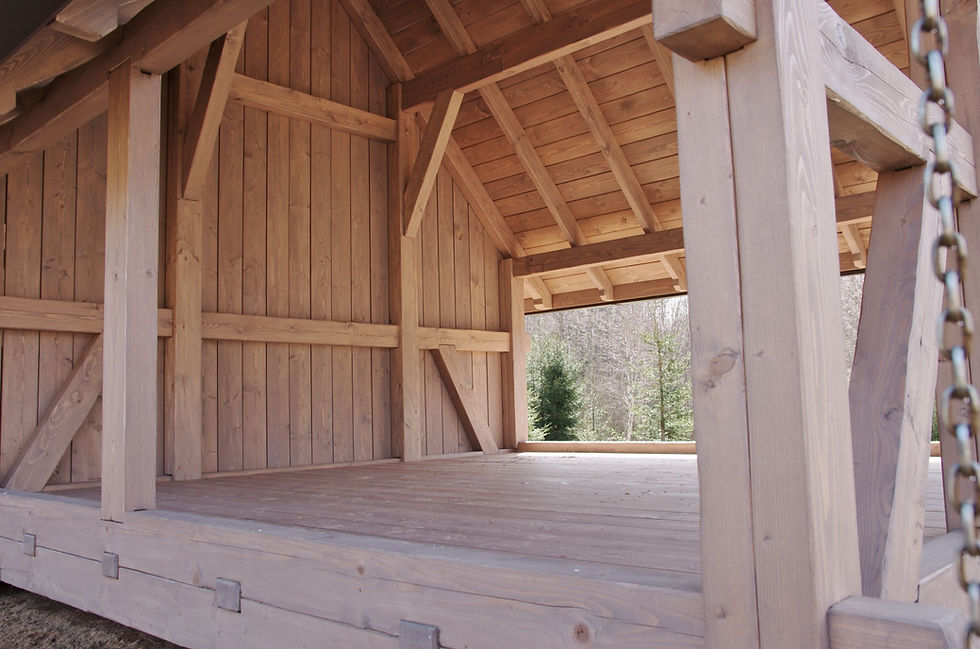

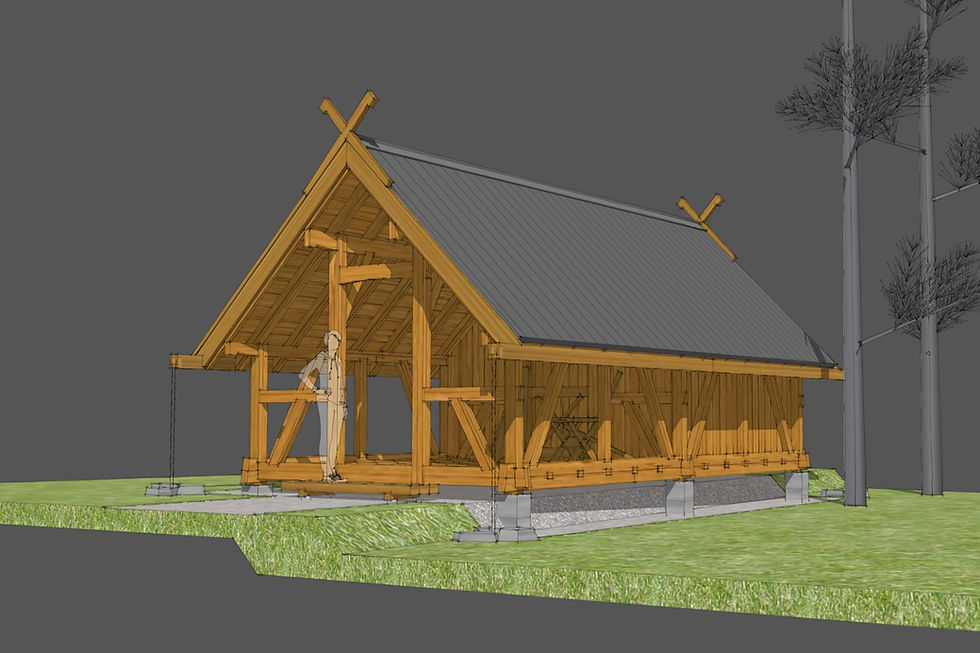

26 m2 timber frame - post & beam shed divided into two equal volumes - closed and open. Originally designed as a fuelwood shed, but can also be used as a small holiday home or campsite. In the closed part we sleep or use it as a warehouse, in the open part we grill and enjoy nature in lounge chairs. Thanks to the integrated wooden floor construction, it can be easily placed on sloped terrain.


timber frame Shed Shelter

timber frame Shed Shelter Hut Storage unit Outbuilding Shack Cabin Warehouse Lean-to Barn Workshop

timber frame Shed Shelter

Shed Shelter

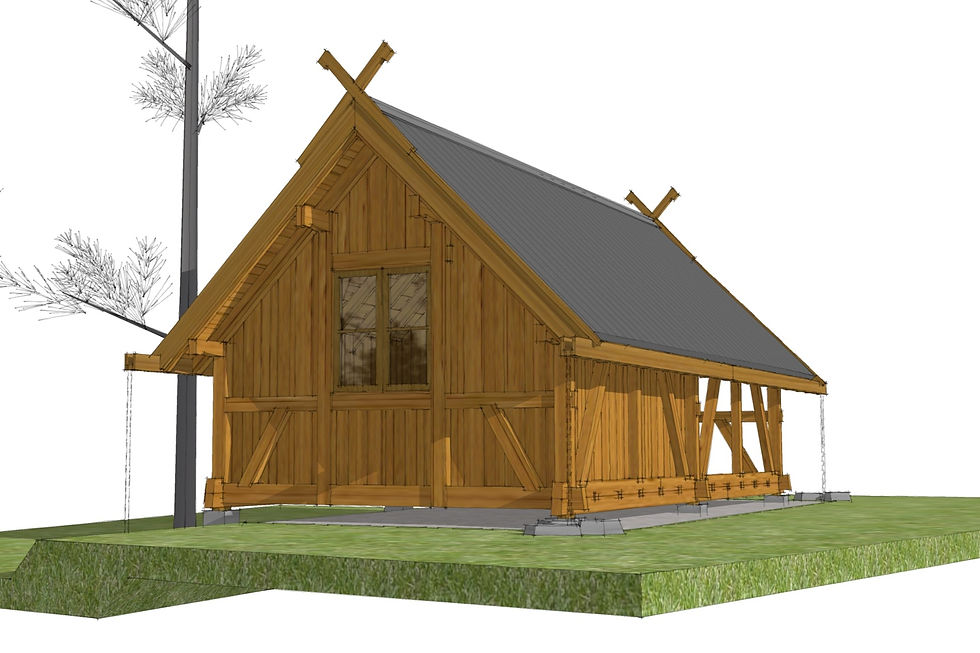

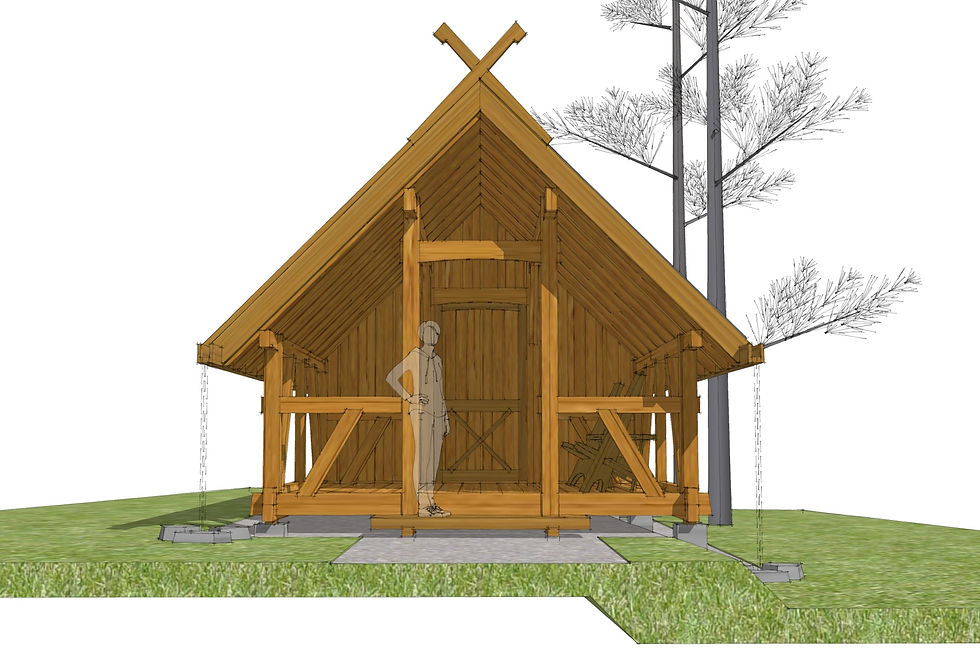

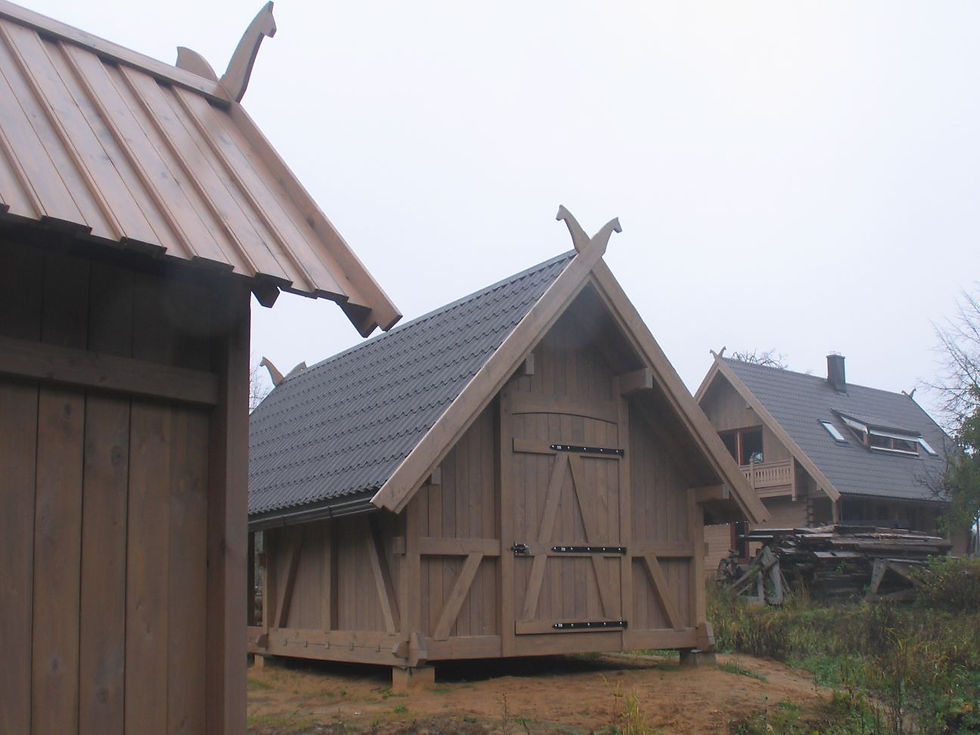

Space for a window or wide door at both ends of the closed part. The construction solution allows the door and window to be changed according to the desired function. If necessary, doors can also be placed at both ends.


timber frame storage barn

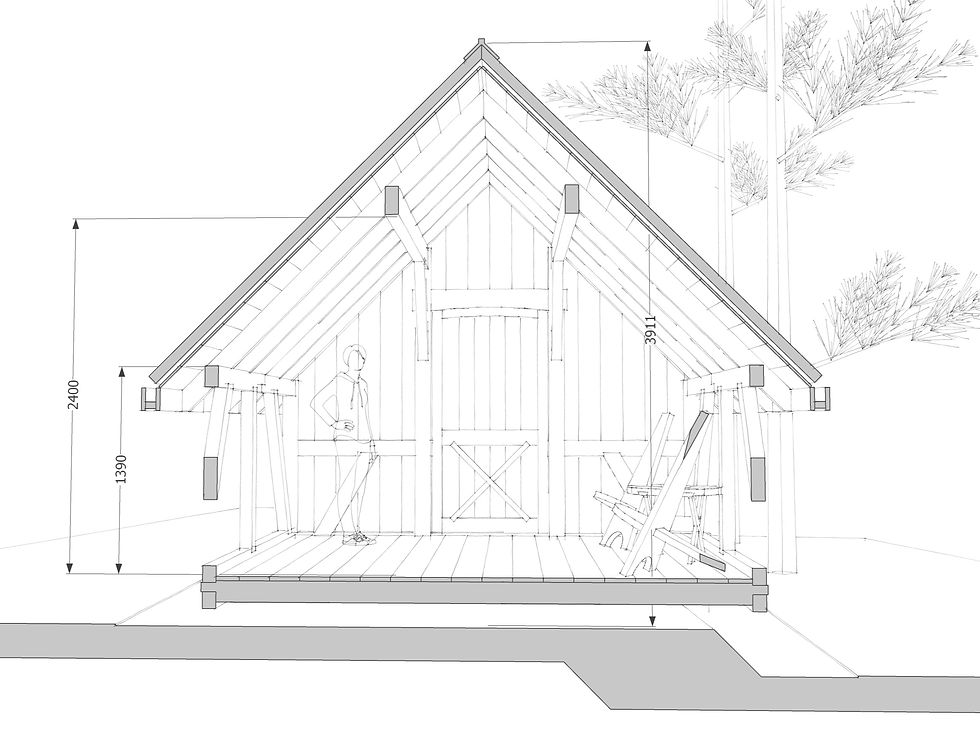

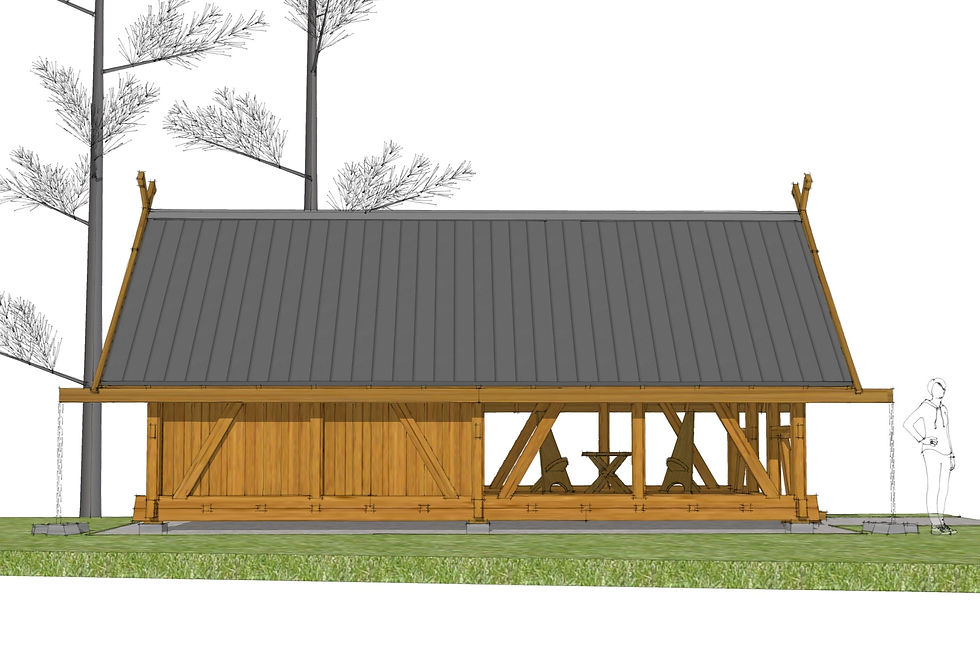

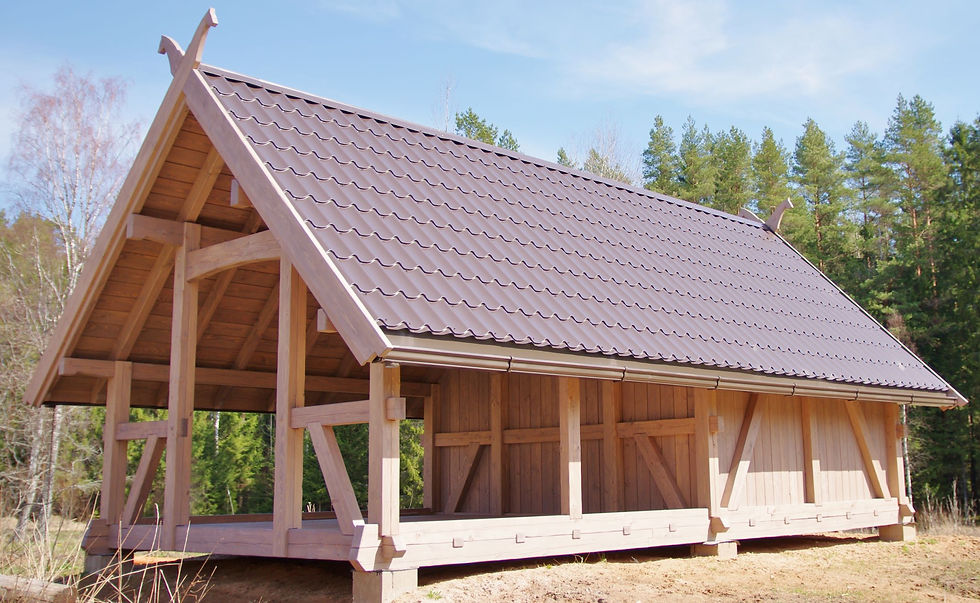

The lowered profile protects the outdoor terrace from rain even in windy weather. Side overhangs could be used as additional fuelwood storage.


Timber frame construction

timber frame Shed Shelter Hut Storage unit Outbuilding Shack Cabin Warehouse Lean-to Barn Workshop

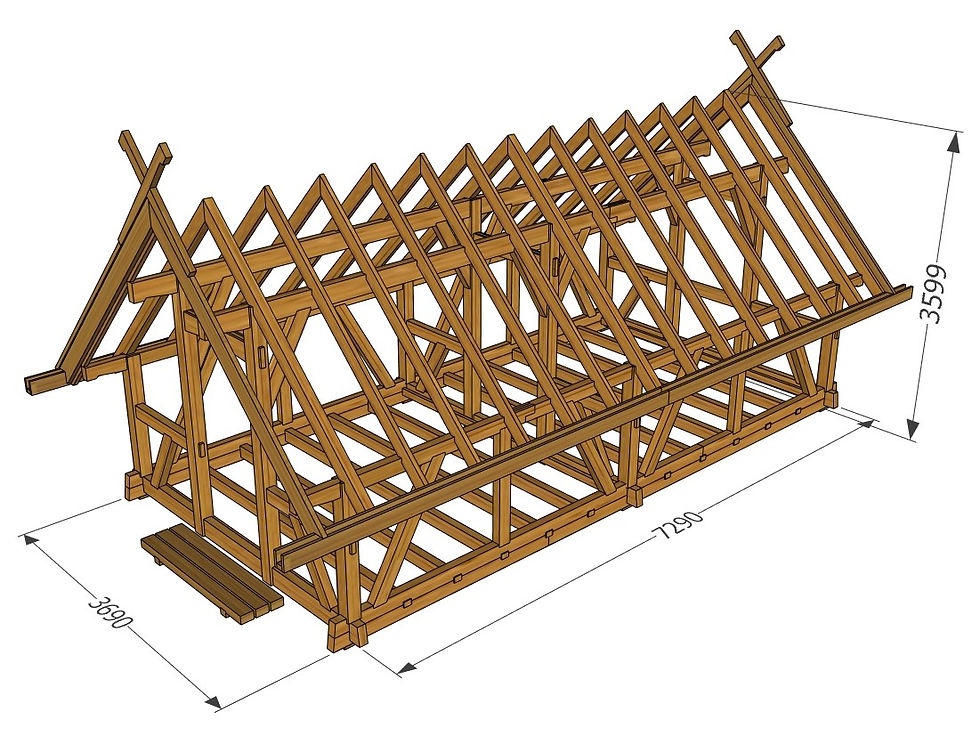

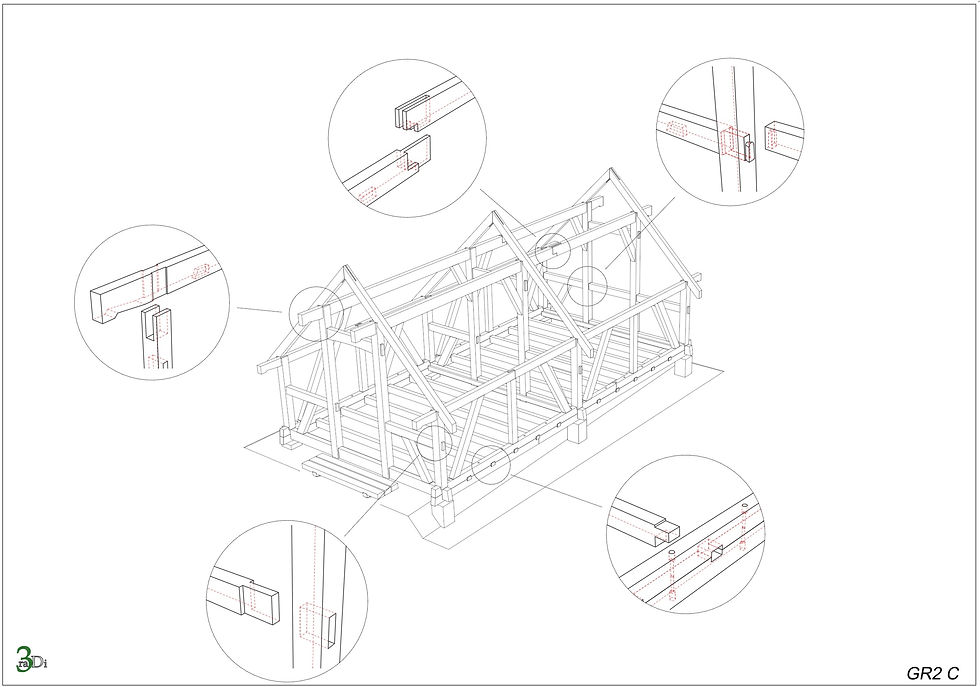

Timber frame construction, with classic joinery. The wooden floor can be assembled on six pile foundations. Main frame consists of load bearing posts 140x140 mm tied with purlins and a 90x190 mm girts with bracing, then rafters. Depending on the application, it is possible to choose different sheeting options. For a fuelwood shed, they can be square boards with gap, for camping, T&G boards with optional extra insulation.



timber frame Shed plans

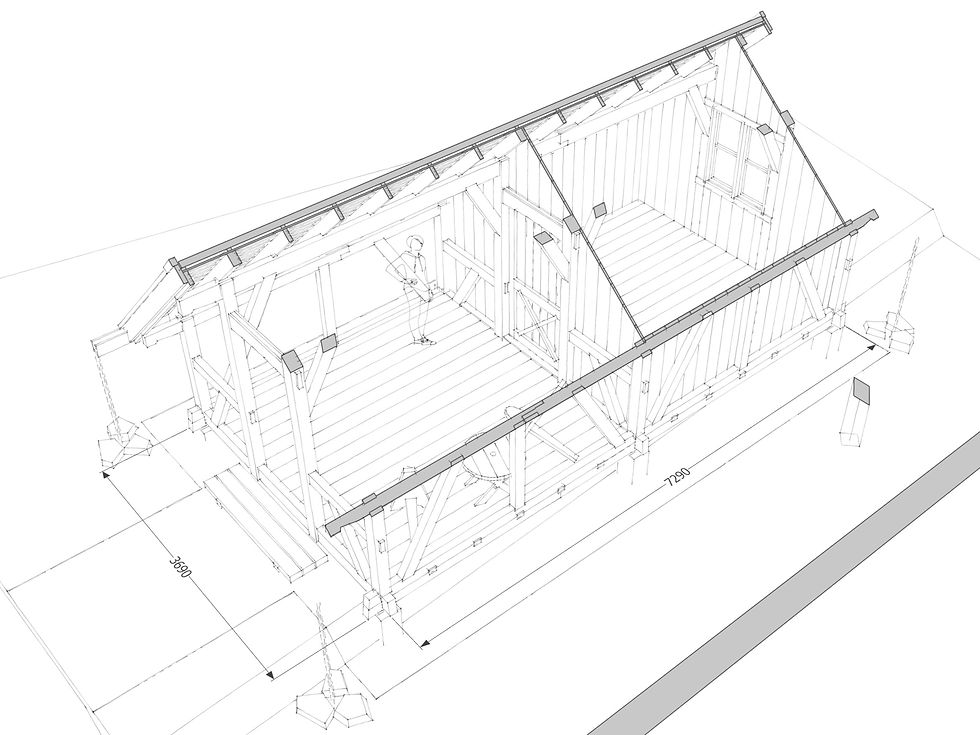

Here is an option for a fuelwood shed in the open part with a garden inventory storage in the closed part.


timber frame Shed designs and plans

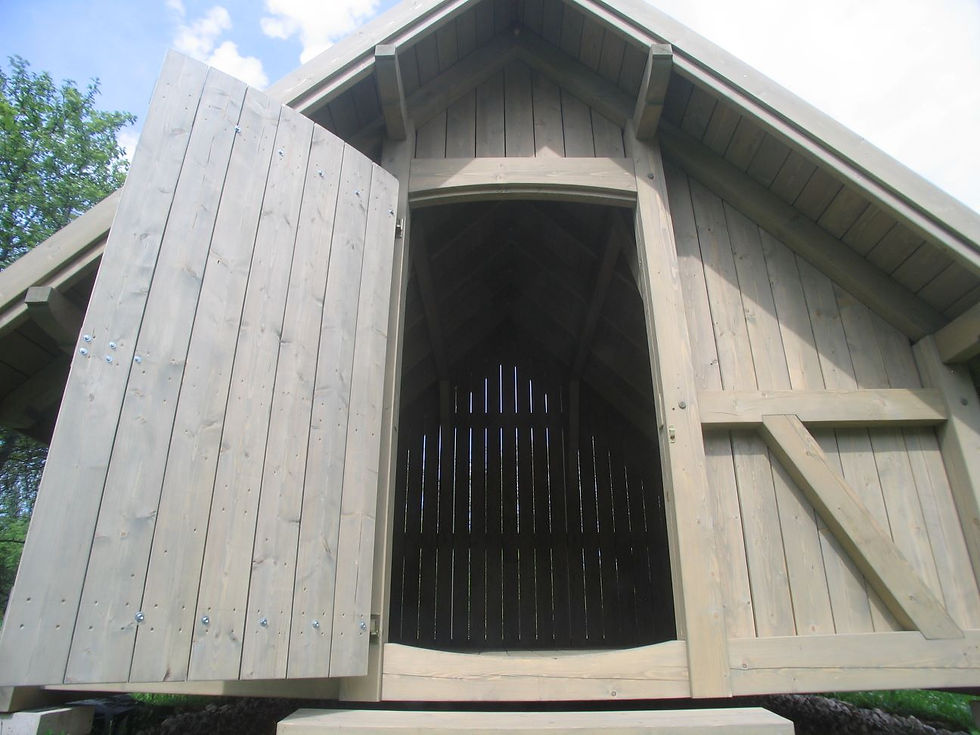

The shed door is wide enough to fit a lawnmower through. True, it will need a ramp.


Shed Shelter building drawings plans

shed designs build plans

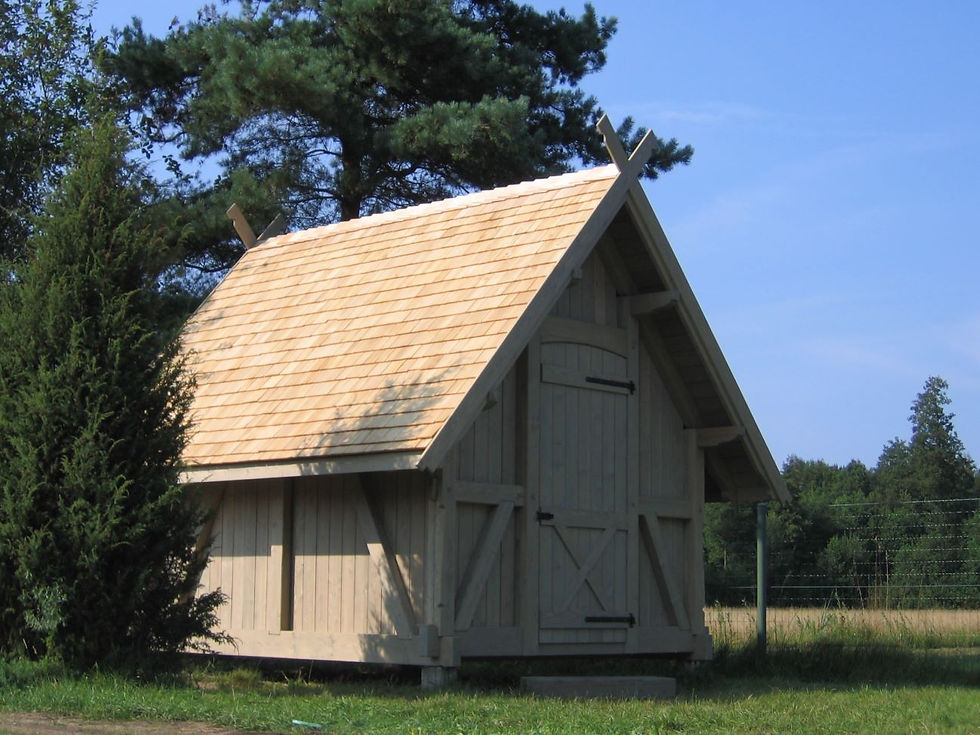

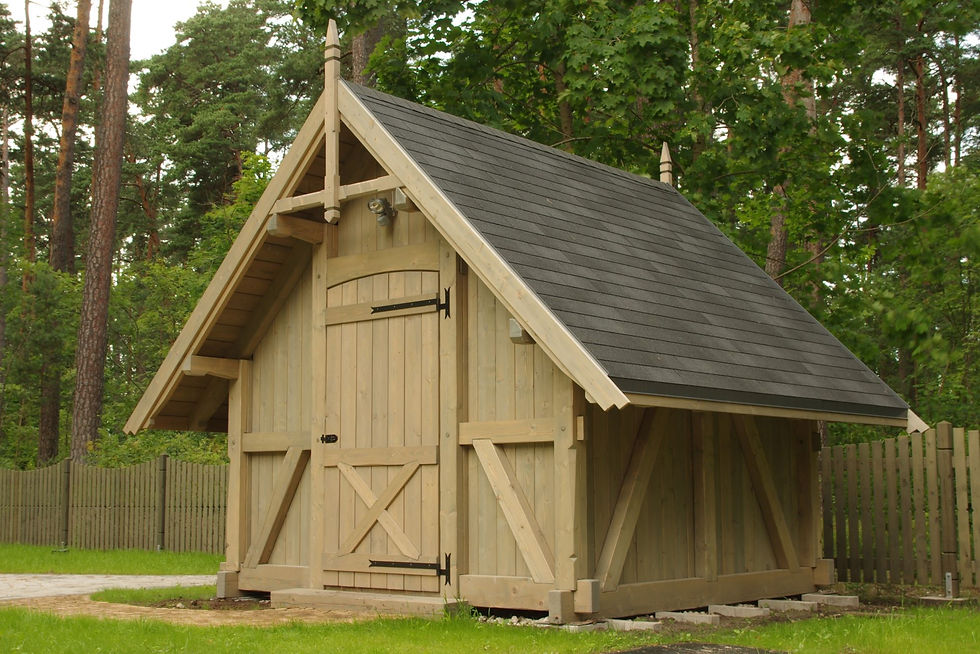

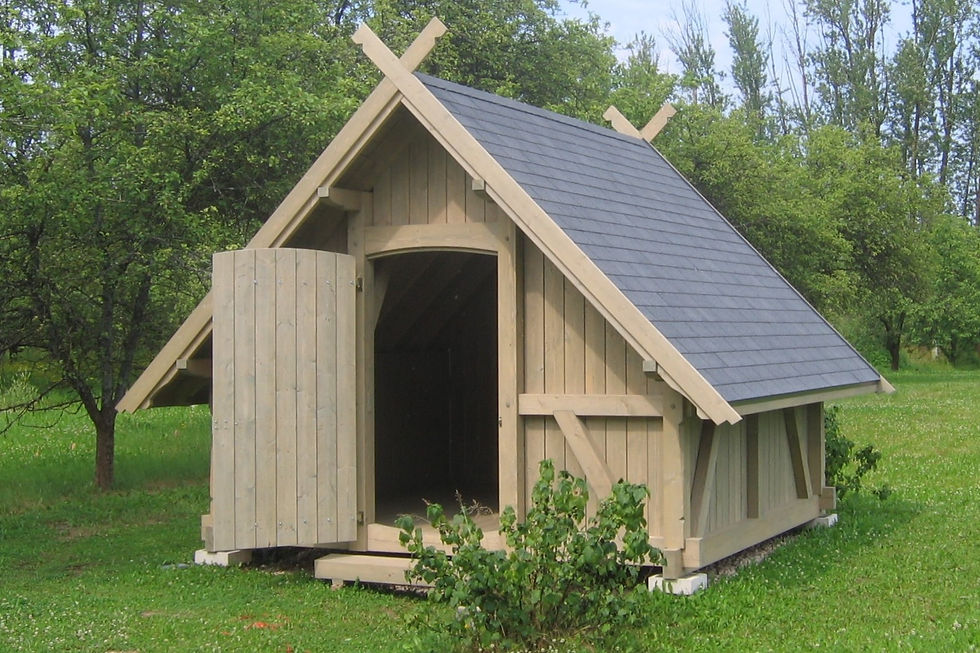

Here is a reduced shed, without a terrace, and with classic style mouldings. Intended for just storing garden equipment. Below are some more pictures with modified GR2C.


small and large barn designs

barns designs and plans

sheds and barns- designs and plans

post & beam shed
